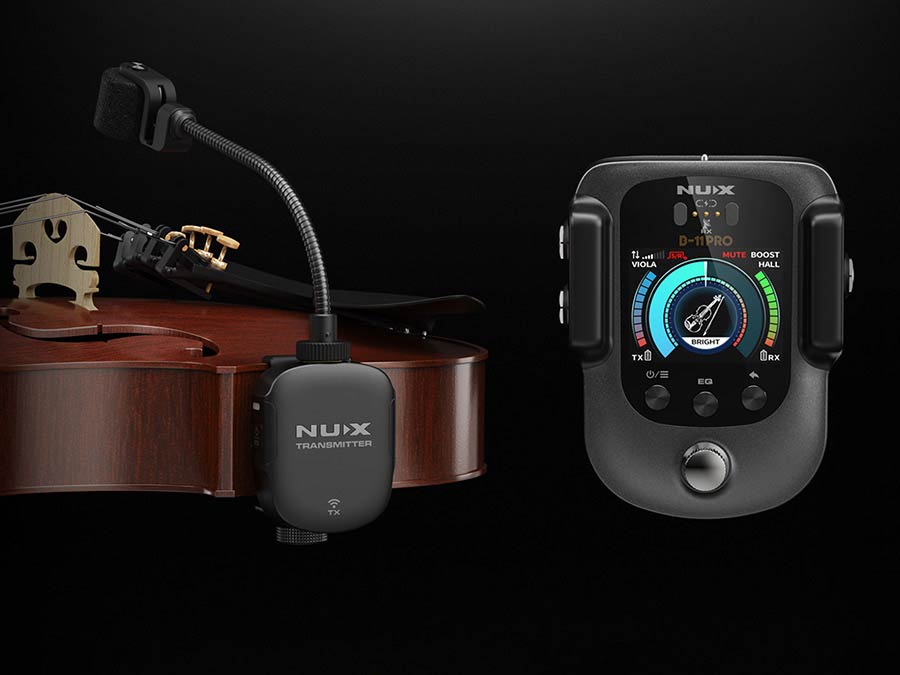

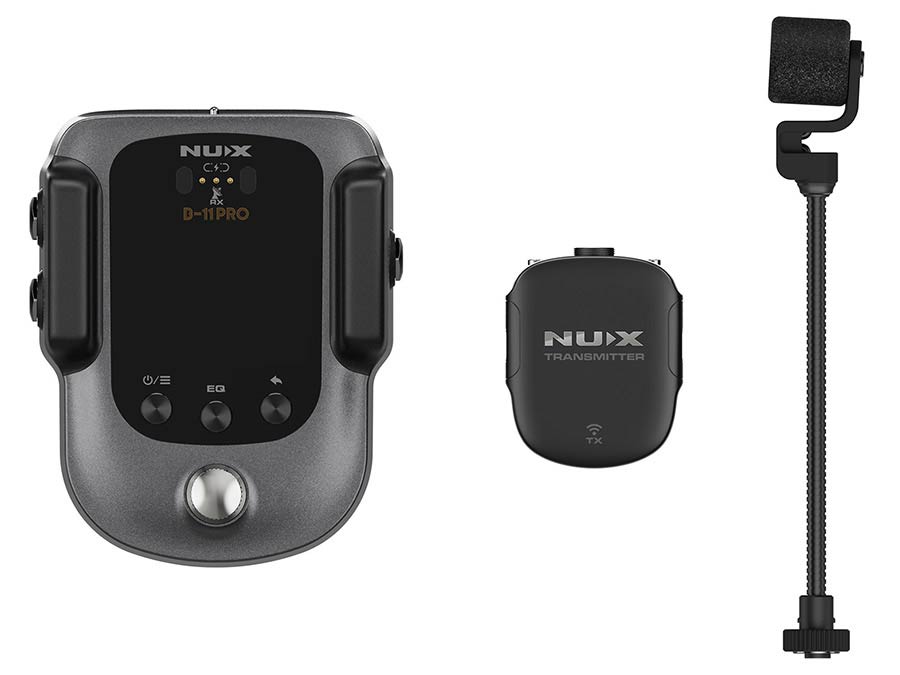

The NUX B-11 PRO is a professional 2.4 GHz wireless system for violin and viola. The system combines a high-quality cardioid condenser microphone with advanced NUX wireless technology and a multi-functional receiver/pedal featuring DI, tuner, EQ, boost, and reverb.
With 24-bit/48 kHz audio quality, a range of up to 50 meters, and latency as low as 3.6 ms, the B-11 PRO offers the freedom of a wireless system without unnecessary compromises in playability and sound quality.
Professional 2.4 GHz Wireless Connection
The B-11 PRO uses NUX Pro Series wireless technology. Intelligent frequency hopping, 1 MHz narrowband transmission, Audio Zip/Unzip, six stability levels, and a true-diversity dual-antenna design help minimize interference and ensure a reliable connection.
The system automatically searches for a suitable wireless frequency. Depending on the environment, different transmission modes can also be selected, allowing for adjustment of the balance between minimum latency and maximum connection stability.
Specifically Developed for Violin and Viola

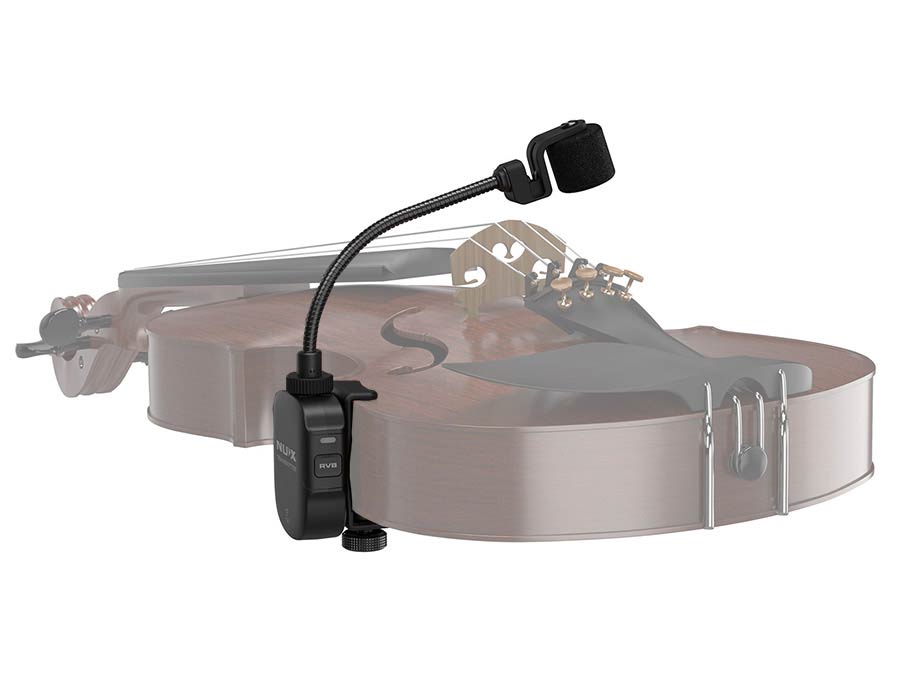

The compact transmitter is specifically designed for use with violins and violas. The included cardioid condenser microphone captures the instrument with a natural and detailed character. A newly designed shock-absorbing construction helps reduce unwanted vibrations.

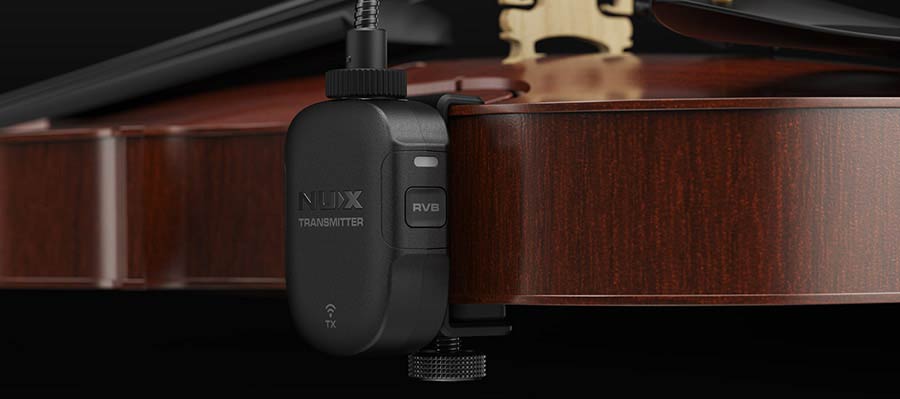

Thanks to its magnetic attachment, the transmitter can be quickly placed on the instrument's holder and easily removed for charging.
Built-in Reverb
The B-11 PRO features professional Room, Hall, and Plate reverb. The effect can be activated directly from the transmitter. More detailed reverb settings are available via the receiver's control menu.
EQ Presets for Violin and Viola
For quick adaptation to different instruments and playing styles, the system offers 10 EQ presets and 2 customizable EQ settings. The available tonal characteristics include Classical, Modern, and Warm.
Low Latency and Long Range
The wireless connection has a range of up to 50 meters (165 ft) under suitable conditions. Three latency settings are available:
- Low Latency: 3.6 ms
- Default: 6.1 ms
- Stable: 9.9 ms

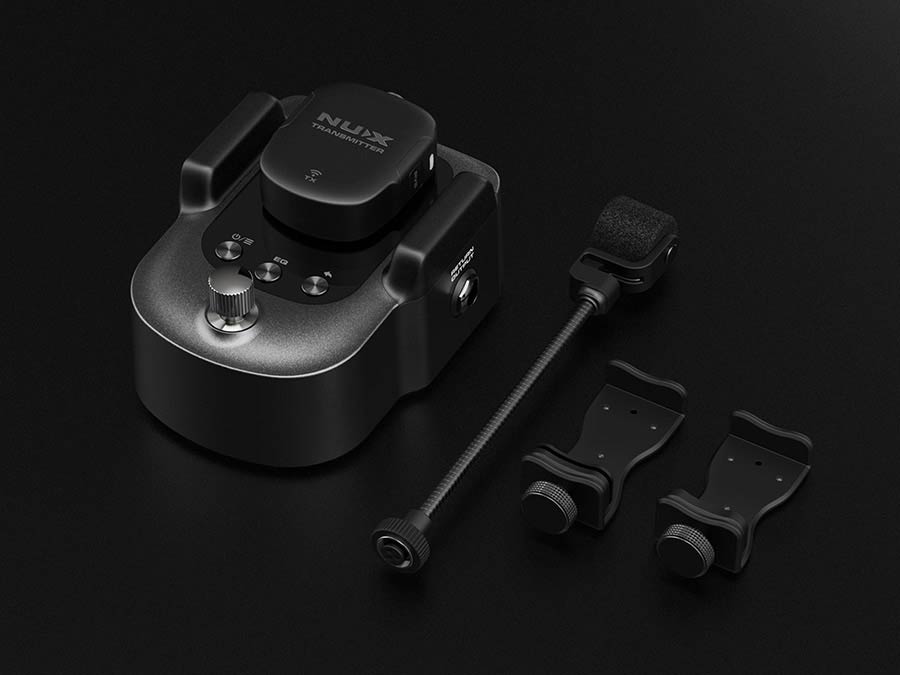

Rechargeable Battery and Magnetic Charging
Both the transmitter and receiver feature a built-in lithium battery. The transmitter offers approximately 6.5 hours of operating time, and the receiver up to approximately 11 hours. During a break, the transmitter can be magnetically attached to the receiver for easy charging.
Key Features
- Professional wireless system for violin and viola
- 2.4 GHz ISM wireless technology
- 24-bit / 48 kHz audio quality
- Range up to 50 meters (165 ft)
- Latency from 3.6 ms
- Cardioid condenser microphone

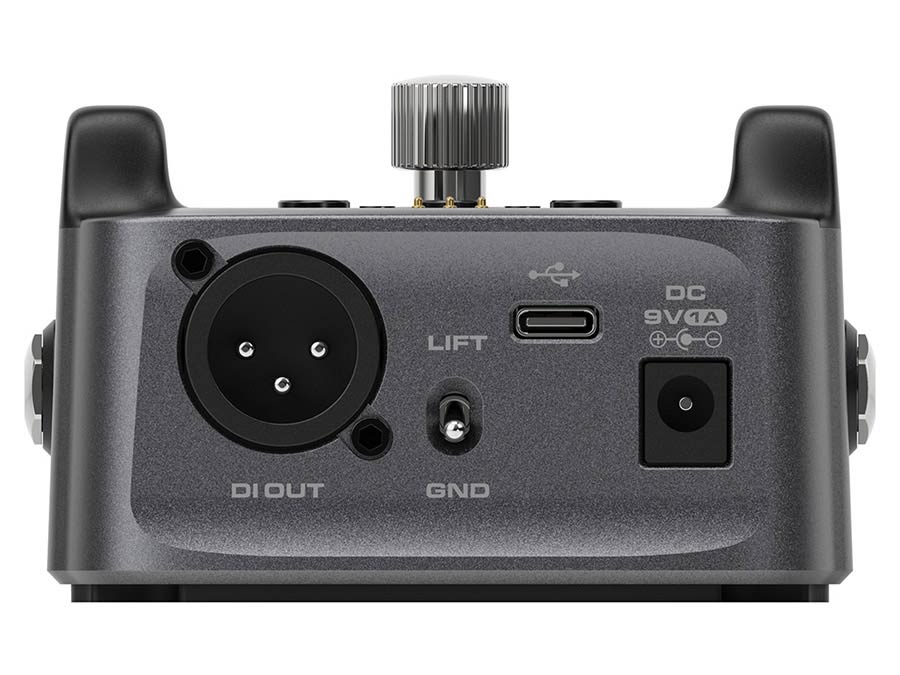

- Receiver/pedal with DI functionality
- Built-in tuner
- Built-in EQ
- 10 EQ presets and 2 customizable EQ settings
- Boost function
- Room, Hall, and Plate reverb
- Intelligent frequency hopping
- True-diversity dual-antenna design
- Adjustable transmission modes
- Magnetic attachment and charging function
- Rechargeable transmitter and receiver
Specifications
| Item Number | B-11PRO |
| Product ID | 59190 |
| Microphone Type | Condenser |
| Polar Pattern | Cardioid |
| Microphone Sensitivity | -46 dB |
| Frequency Band | 2.4 GHz ISM (2.4 – 2.4835 GHz) |
| Transmit Power | <10 mW E.I.R.P. |
| Range | Up to 50 m (165 ft) |
| Latency | 3.6 ms Low Latency / 6.1 ms Default / 9.9 ms Stable |
| Audio Quality | 24-bit / 48 kHz |
| Frequency Response | 20 Hz – 20 kHz |
| Max Output Level | 6.4 dBV (Send/Output) |
| THD+Noise | <0.01% @ 1 kHz |
| Output Dynamic Range | 112 dBA (Send/Output) |
| Transmitter Battery Life | Up to 6.5 hours |
| Receiver Battery Life | Up to 11 hours |
| Transmitter Battery | 3.7 V / 450 mAh |
| Receiver Battery | 3.7 V / 3000 mAh |
| Receiver Power Supply | DC 9 V, min 1 A, center negative |
| Transmitter Dimensions | 90 × 115 × 55 mm |
| Transmitter Weight | Approx. 33 g |
| Receiver Dimensions | 90 × 115 × 55 mm |
| Receiver Weight | Approx. 468 g |
| Model | B-11 Pro |
|---|---|
| Serie | B-11 PRO |
| Gewicht | Approx. 33 g |
| Afmetingen | 90 x 115 x 55 mm |
| Artikelnummer | B-11PRO |
